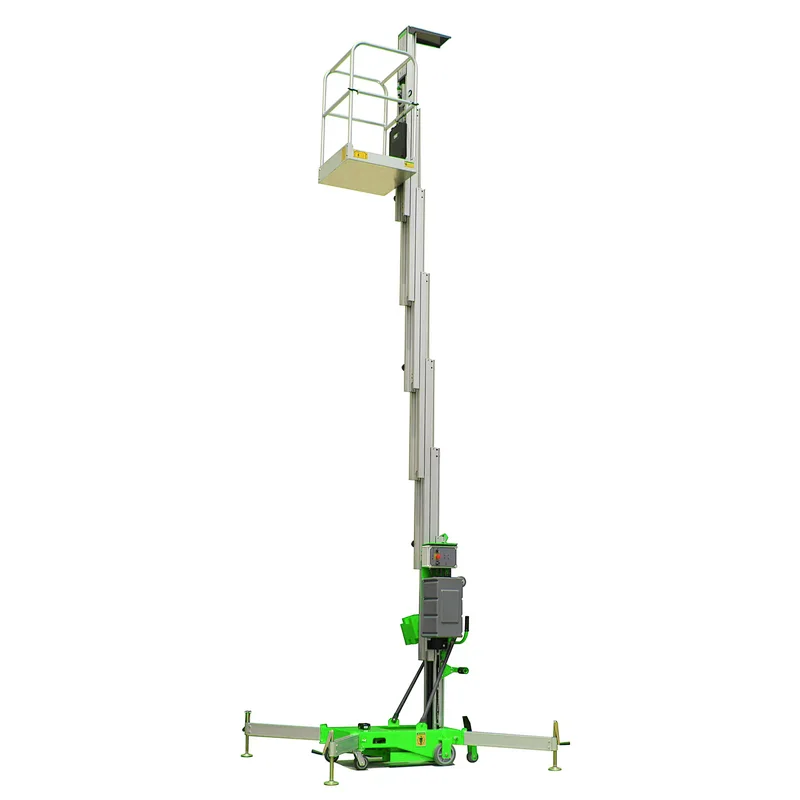

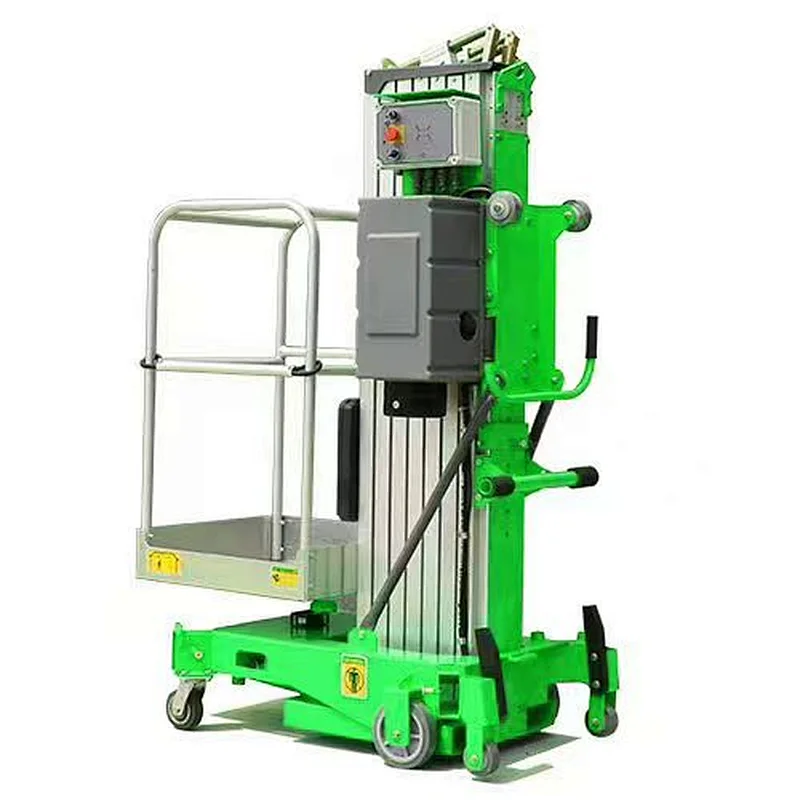

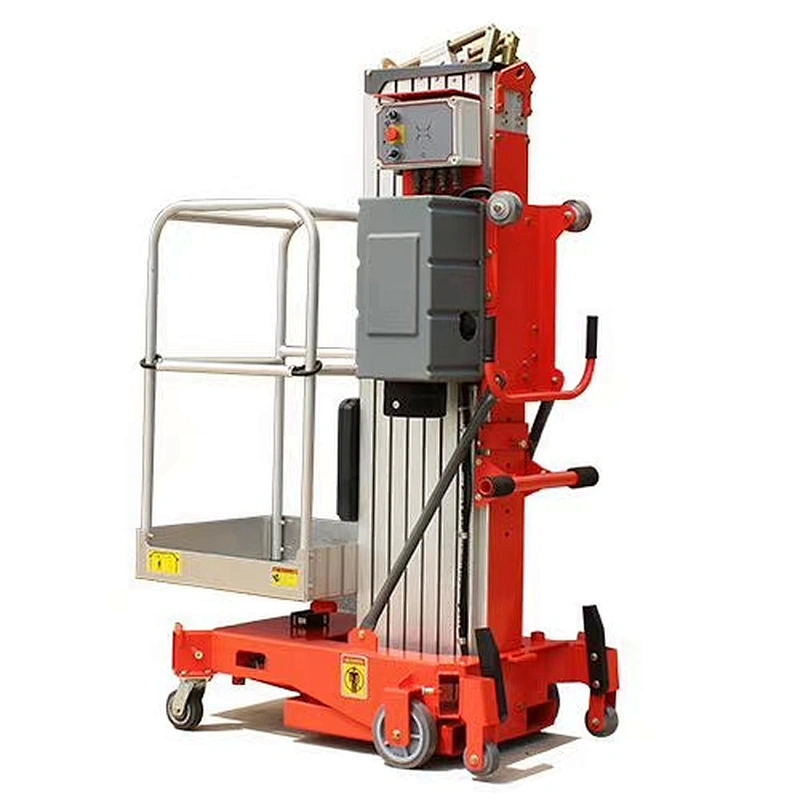

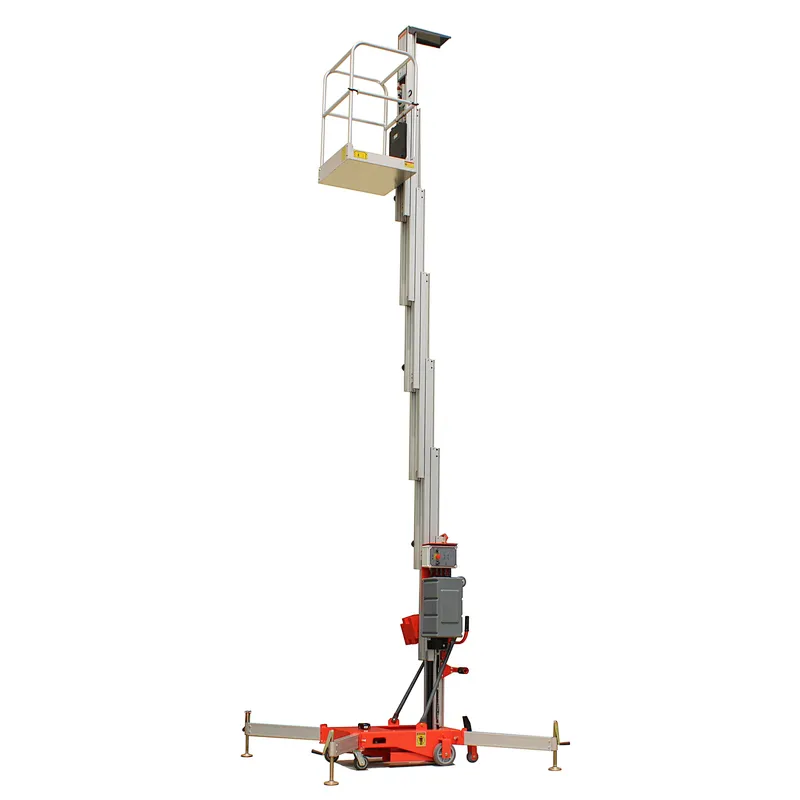

12m 120kg Load Single Man Lift with CE Approved
The Single Mast Vertical Lift is mainly used for the installation and maintenance of the narrow spaces such as workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and more. It is easily to go through the regular doors and elevators.
Power supply standard is AC version (110V or 220V or 380V) and DC chargeable battery version (12V ) or AC &DC version are both optional. DC battery version always comes with battery charger, batteries can be recharged by automatic, built-in charger, and battery discharge indicator warns of low charge conditions.
The lifting height ranges from 1.99m to 12m for different size Vertical Lift and the loading capacity varies from 120Kg to 150Kg.
Features

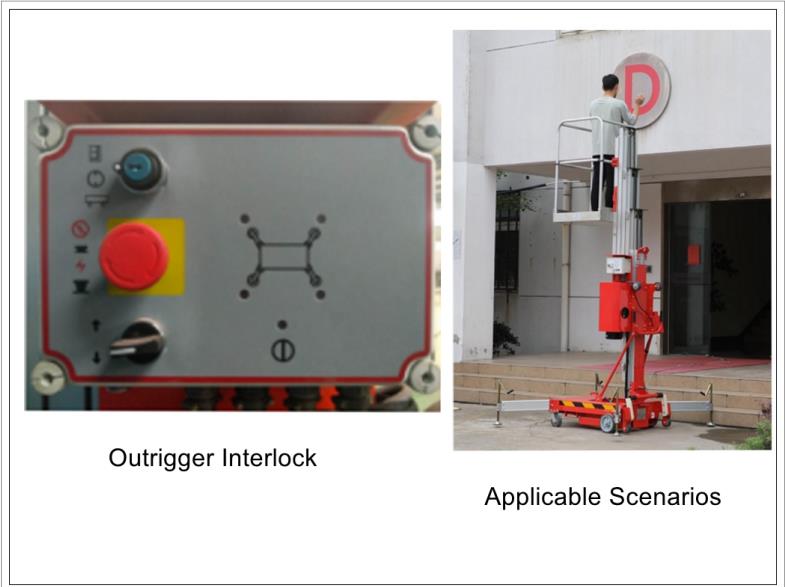

1.Outrigger Interlock
2.Deadman Switch
3.AC power on Platform
4.Emergency Stop Button
5.Easily Loading to Pickup Truck
6.Emergency Lowing System
7.Leveling Gauge
8.Forklift Pocket
9.Cylinder Holding Valve
Specification
Details
Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
Power supply standard is AC version (110V or 220V or 380V) and DC chargeable battery version (12V ) or AC &DC version are both optional. DC battery version always comes with battery charger, batteries can be recharged by automatic, built-in charger, and battery discharge indicator warns of low charge conditions.
The lifting height ranges from 1.99m to 12m for different size Vertical Lift and the loading capacity varies from 120Kg to 150Kg.
Features
1.Outrigger Interlock
2.Deadman Switch
3.AC power on Platform
4.Emergency Stop Button
5.Easily Loading to Pickup Truck
6.Emergency Lowing System
7.Leveling Gauge
8.Forklift Pocket
9.Cylinder Holding Valve
Specification
| Model | MT500-1 | MT600-1 | MT800-1 | MT900-1 | MT1000-1 | MT1200-1 |
| Platform Capacity | 150Kg | 150Kg | 150Kg | 150Kg | 136Kg | 120Kg |
| Occupants | 1 | 1 | 1 | 1 | 1 | 1 |
| Working height max | 6.7m | 8.2m | 9.8m | 11.2m | 12.4m | 14m |
| Platform height max | 4.7m | 6.2m | 7.8m | 9.2m | 10.4m | 12m |
| Overall Length | 1.24m | 1.24m | 1.36m | 1.4m | 1.42m | 1.46m |
| Overall Width | 0.74m | 0.74m | 0.74m | 0.74m | 0.74m | 0.81m |
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | 1.99m | 2.68m |
| Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.7*1.7m | 1.9*1.7m | 1.9*1.7m | 2.3*1.9m |
| Platform Size (LxW) | 0.67*0.66m | 0.67*0.66m | 0.67*0.66m | 0.67*0.66m | 0.67*0.66m | 0.67*0.66m |
| Total Weight (AC) | 300Kg | 320Kg | 345Kg | 365Kg | 385Kg | 460Kg |
| Total Weight (DC) | 335Km | 355Kg | 380Kg | 400Kg | 420Kg | 495Kg |
| Power AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
| 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw | 0.75Kw | |
| Power DC | 12V | 12V | 12V | 12V | 12V | 12V |
| PowerDC Motor | 1.5Kw | 1.5Kw | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A |

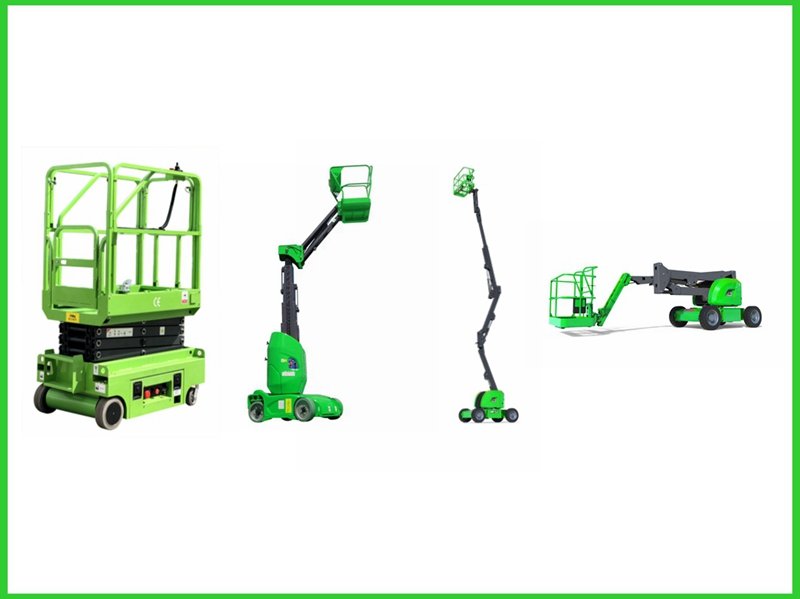

Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
