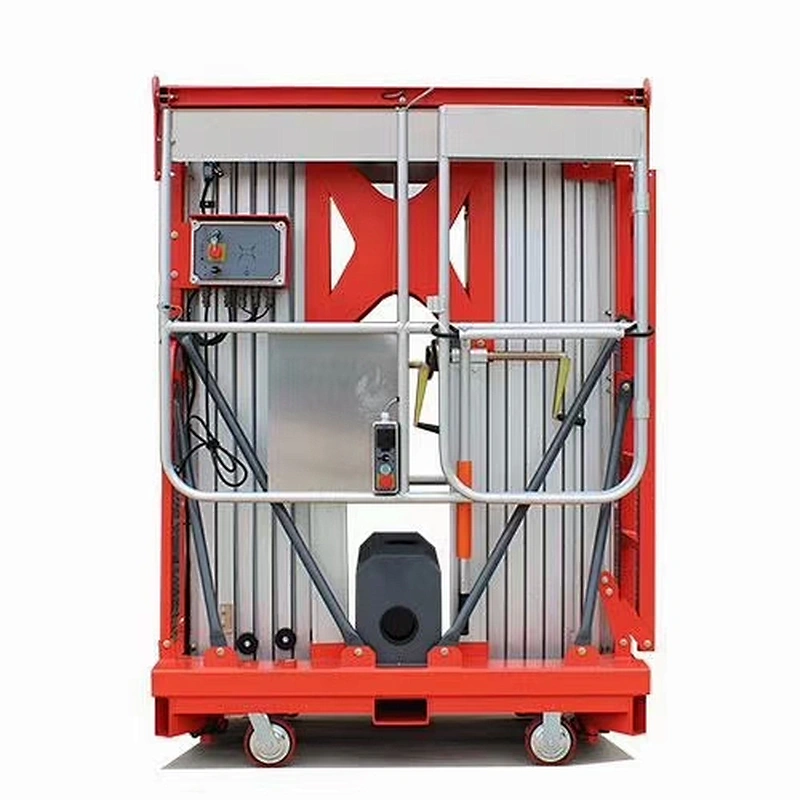

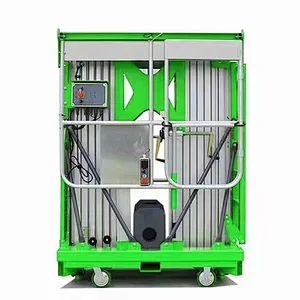

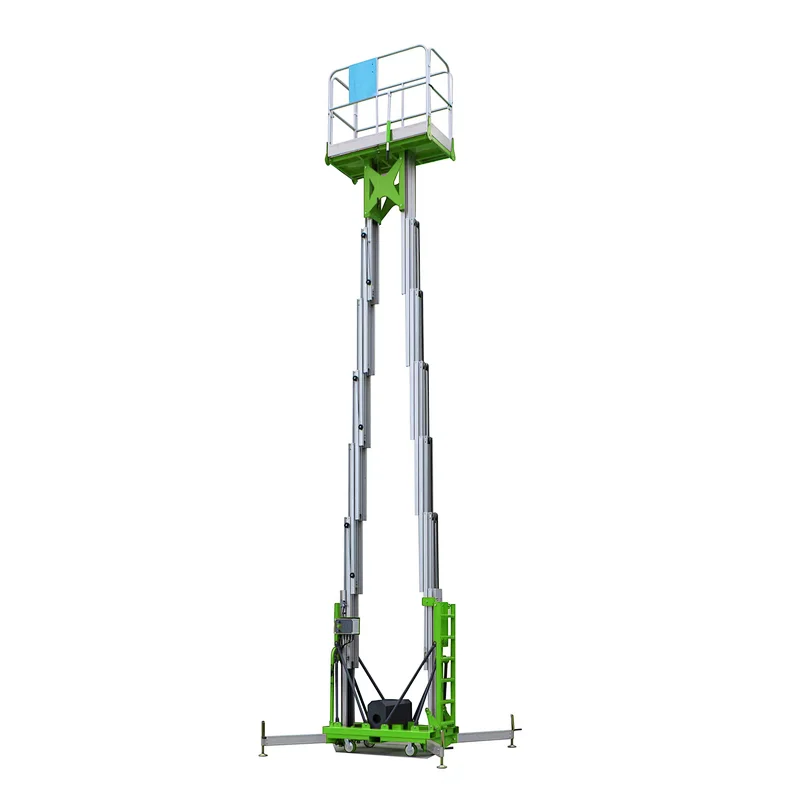

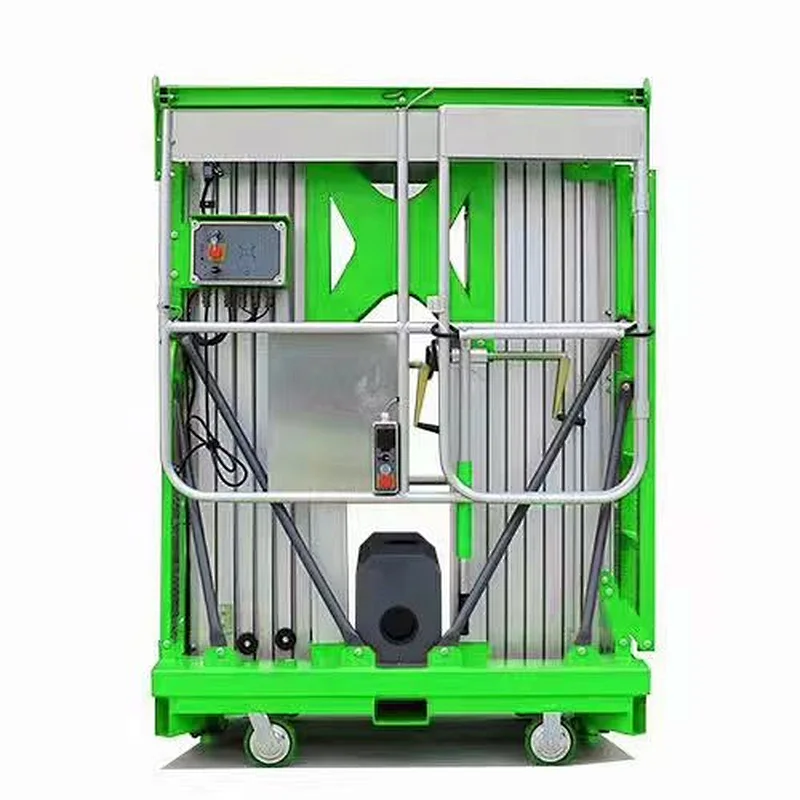

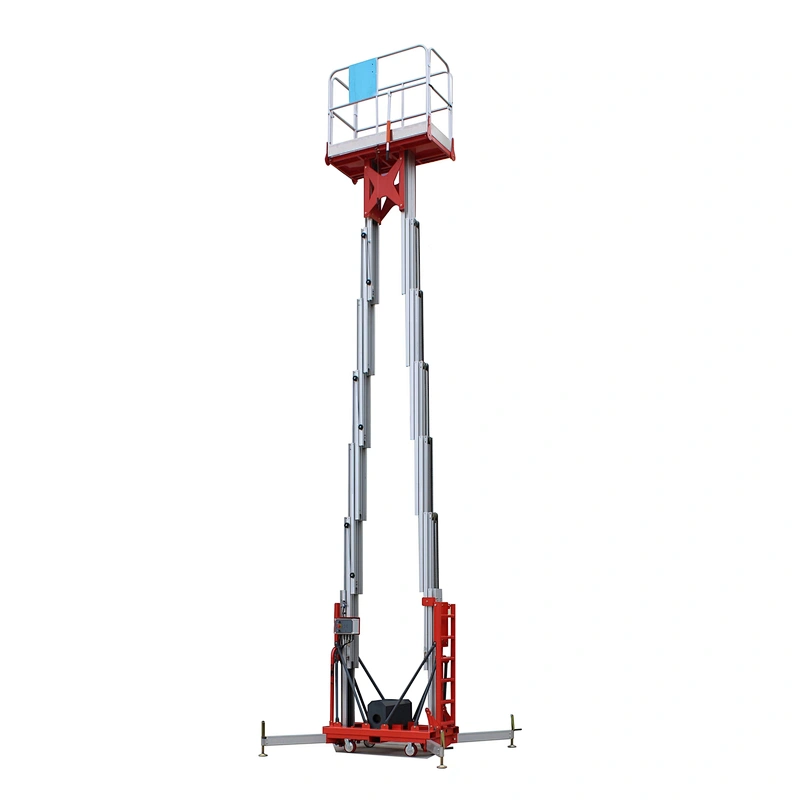

16m 150kg Load two Men Lift with CE Approved
The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.
The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.
The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.

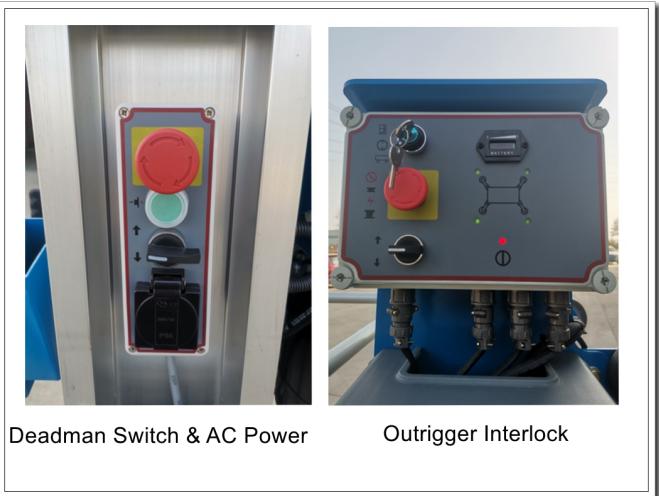

1.Outrigger Interlock
2.Deadman Switch
3.AC Power on Platform
4.Emergency Lowing System
5.Leveling Gauge

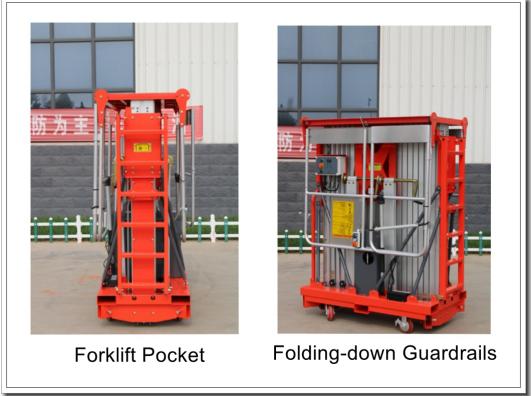

6.Forklift Pocket
7. Cylinder Holding Valve
8. Easy To Operate Up/Down On Platform And Ground
9. Double Chains Improving the Safety And StrengthSpecification
Model
MT600-2
MT800-2
MT1000-2
MT1200-2
MT1400-2
MT1600-2
Platform Capacity
250KG
250KG
250KG
200KG
200KG
150KG
Occupants
2
2
2
2
2
1
Working Height max
8M
10M
12.4M
14M
16M
18M
Platform Height max
6M
8M
10.4M
12M
14M
16M
Overall Length
1.45M
1.45M
1.45M
1.45M
1.88M
1.88M
Overall Width
0.81M
0.81M
0.81M
0.81M
0.81M
0.81M
Overall Height
1.99M
1.99M
1.99M
1.99M
2.68M
2.68M
Outrigger Coverage
2.45M*1.75M
2.45M*1.75M
2.45M*2.1M
2.45M*2.1M
2.7M*2.8M
2.7M*2.8M
Platform Size (LxW)
1.45M*0.7M
1.45M*0.7M
1.45M*0.7M
1.45M*0.7M
1.8M*0.7M
1.8M*0.7M
Total Weight (AC)
610KG
645KG
715KG
750KG
892KG
996KG
Total Weight (DC)
660KG
695KG
765KG
800KG
942KG
1046KG
Power AC
380V/220V/110V
380V/220V/110V
380V/220V/110V
380V/220V/110V
380V/220V/110V
380V/220V/110V
Power AC Motor
1.5KW
1.5KW
1.5KW
1.5KW
1.5KW
1.5KW
Power DC
2*12V
2*12V
2*12V
2*12V
2*12V
2*12V
PowerDC Motor
2.2KW
2.2KW
2.2KW
2.2KW
2.2KW
2.2KW
Charger
12V/15A
12V/15A
12V/15A
12V/15A
12V/15A
12V/15A
Details
