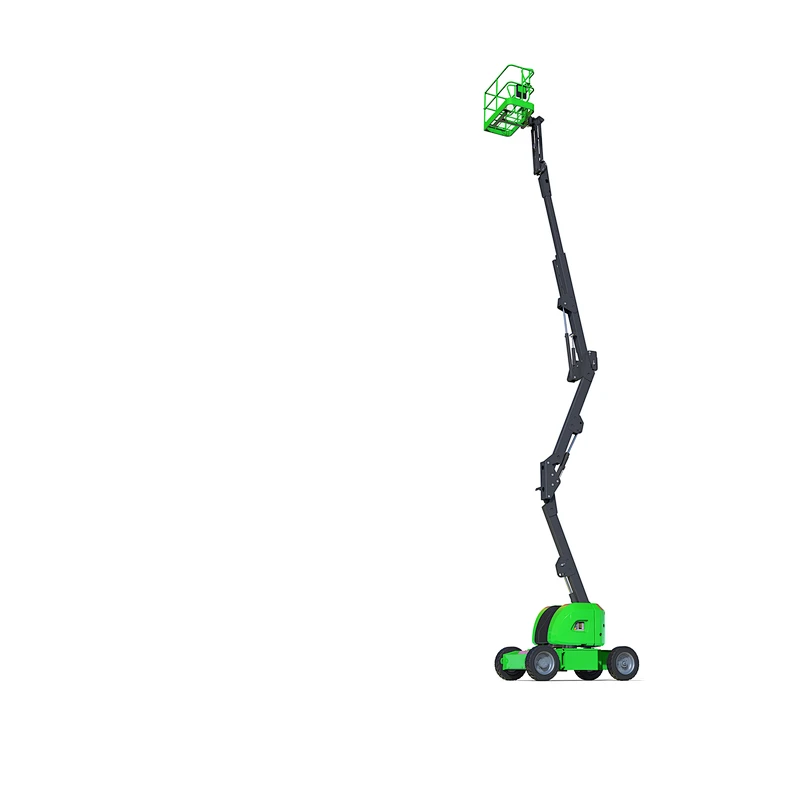

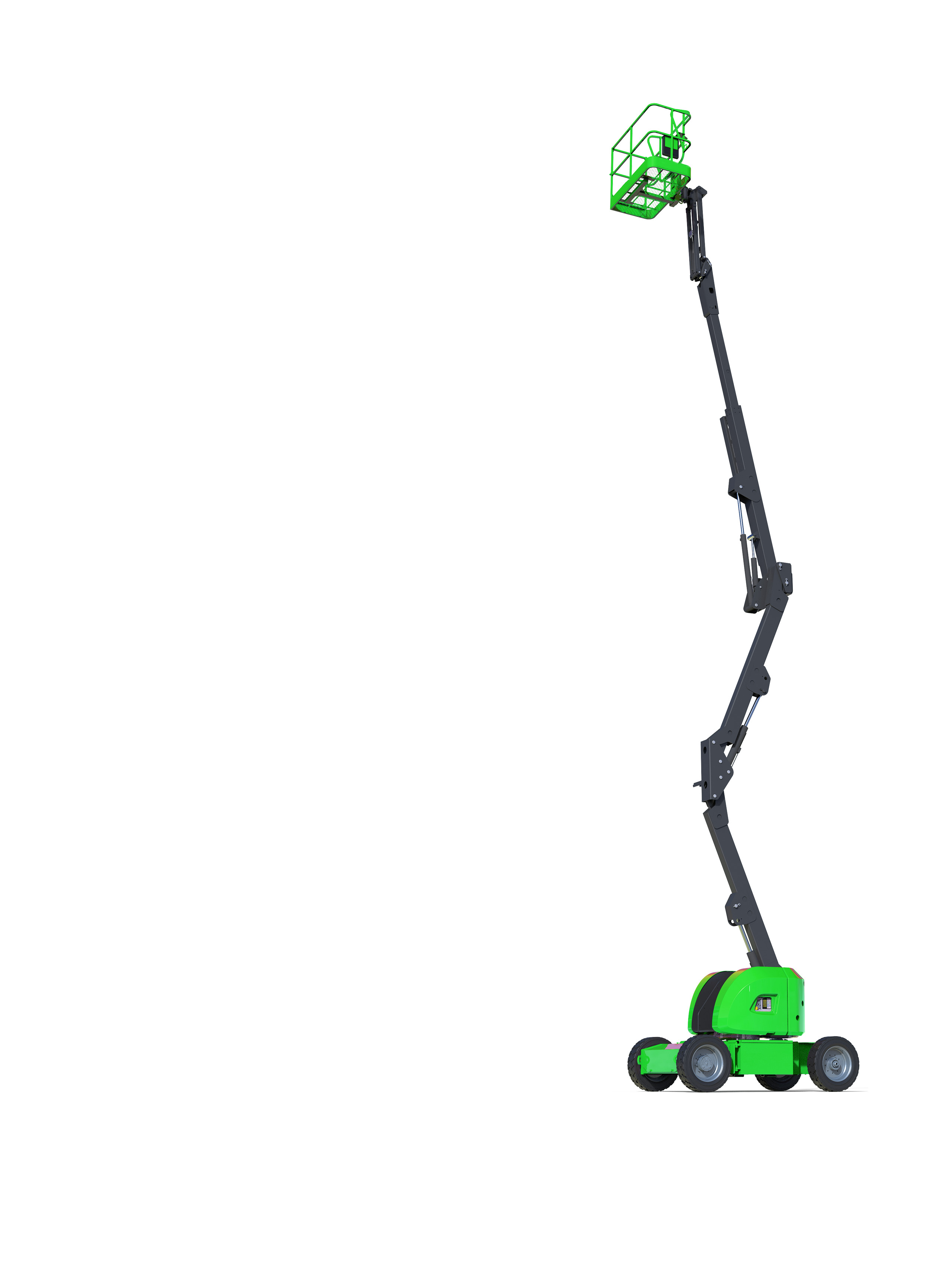

It has a compact structure and flexible steering. The width of its chassis can guarantee the equipment enter narrow passages and crowded work areas.
Standby power unit, operable working platform reset, convenient transportation mode can be towed to various places.
Mainly used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations and other high-altitude equipment installation, maintenance and cleaning of aerial working platforms enable us to complete work faster, better, more convenient and safe.
Product Paramenters:
1-Power Source: Diesel Engine And Battery
2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment
3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate
4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures
5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment.
Model | HA14J | HA18J |
Max.Working Height | 16m | 20m |
Platform Height | 14m | 18m |
Horizontal Reach | 8m | 12m |
Max. Up and Over | 7.7m | 8.1m |
Platform Length | 1.5m | 2.4m |
Platform Width | 0.76m | 0.9m |
Wheel Base | 2.0m | 2.5m |
Ground Clearance | 0.14m | 0.31m |
Platform Capacity | 230kg | 250kg |
Drive Speed (Stowed) | 4.8km/h | 6.5km/h |
Gradeability (Stowed) | 30% | 45% |
Turning Radius (In.) | 1.1m | 2.42m |
Turning Radius (Out.) | 3.4m | 5.57m |
Turntable Rotation | 360° | 360° |
Platform Rotation | ±90° | ±90° |
Turntable Tail Swing | 0° | 0° |
Tilt Sensor Activation Max. | 3° | 5° |
Operating Wind Speed | 12.5m/s | 12.5m/s |
Leveling platform | Hydraulic level | Hydraulic level |
Weight | 6500kg | 11000kg |
Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
