Chen Lift Launches A Range Of Fully Oil-Free Machines

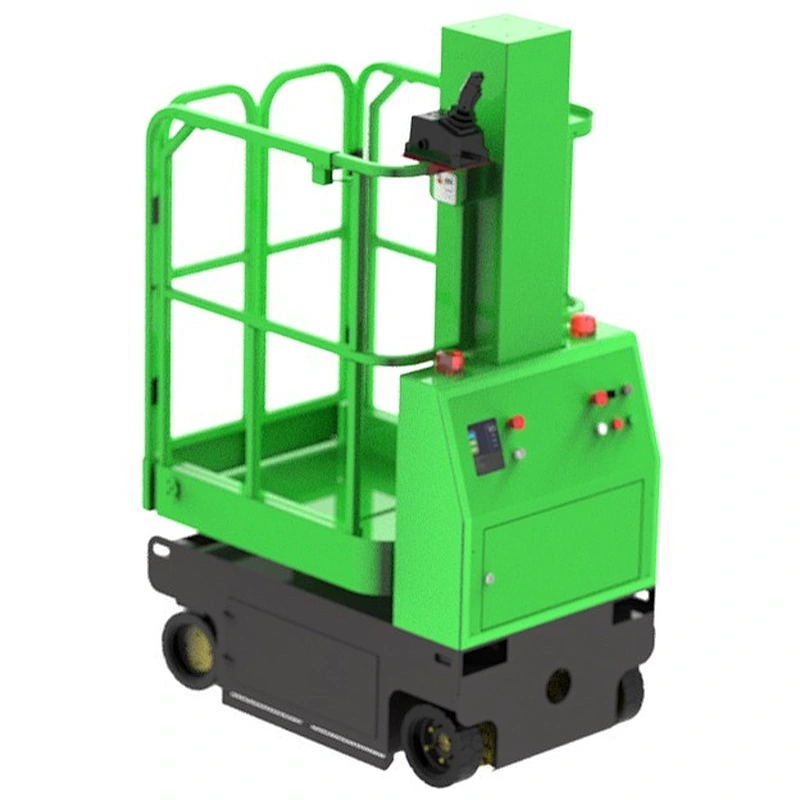

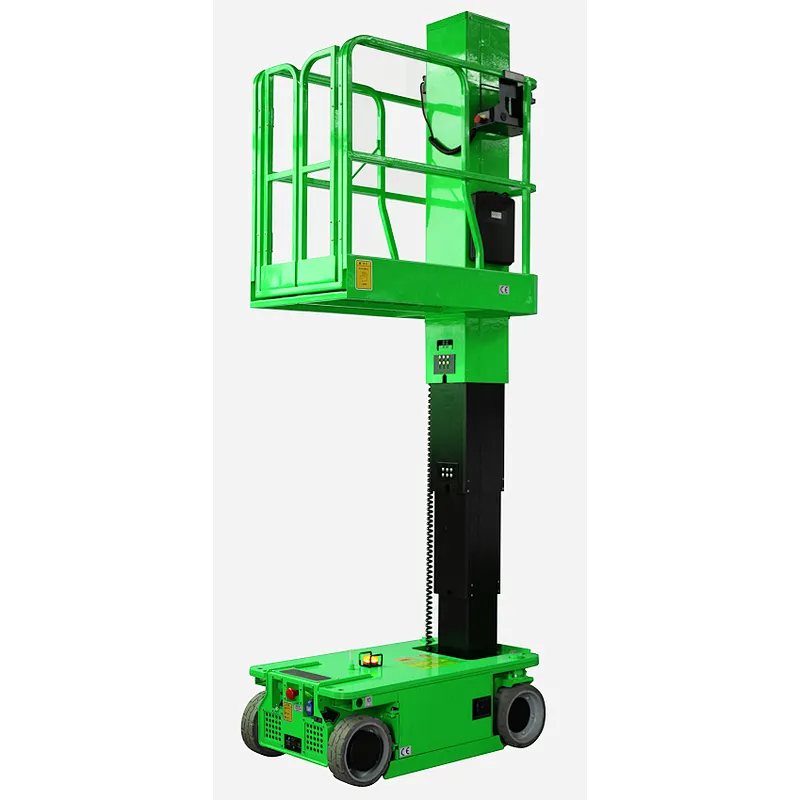

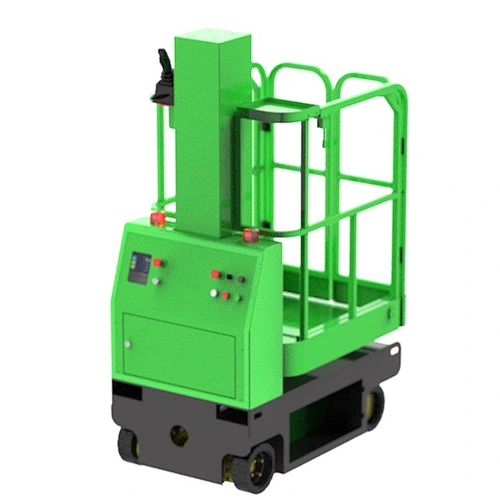

CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil and working heights of 6.2 m
Features of this vertical mast lifts differed from our standard products are listed as below
- The machine rises and falls electrically, with no hydraulic oil.
- Drive and turning around are also without hydraulic oil. It controlled by electrical.
- Low energy consumption, the total transmission efficiency of the direct motor drive systems reaches 95%, more than 30% energy saving compared with the traditio42nal hydraulic system.
- Higher levels of water and dust resistance, with built-in position sensors and real-time data monitoring of the working cycle.
- Easy maintenance,no hydraulic system, avoid system problems such as valve core stuck, oil leakage, oil change, high and low temperature efficiency reduction, equipped with maintenance-free permanent magnet synchronous motor and AGM battery, which greatly reduces maintenance costs.
- More comfortable, full stroke proportional control eliminates the jitter and abrupt feeling caused by self-gravity lowering of the hydraulic system, providing a better experience.
- More environmentally friendly, the noise of the machine is lower than that with the hydraulic system, all-electric and oil-free, zero-emission, high degree of environmental protection.
- Optional Configuration: wireless built in position sensor
Specification:
Model | MD260 | MD360 | MD420 |
Max.Working Height | 4.58m | 5.66m | 4.2m |
Max. Platform Height | 2.58m | 3.66m | 6.2m |
Loading Capacity | 230Kg | 230Kg | 230Kg |
Platform Dimesion | 1.02*0.76m | 1.02*0.76m | 0.85*0.8m |
Ground Clearance | 0.06m | 0.06m | 0.07m |
Battery | 2*12V/150Ah | 2*12V/150Ah | 2*12V/120Ah |
Up/Down Speed | 12S/16S | 12S/16S | 15S/22S |
Travel Speed (Stowed) | 0.8Km/h | 0.8Km/h | 0.8Km/h |
Travel Speed (Raised) | 4Km/h | 4Km/h | 5Km/h |
Gradeability | 25% | 25% | 25% |
Total Height | 1.9m | 1.9m | 2.0m |
Weight | 750Kg | 850Kg | 900kg |
Other Related Products
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 20 Years Experience
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.
