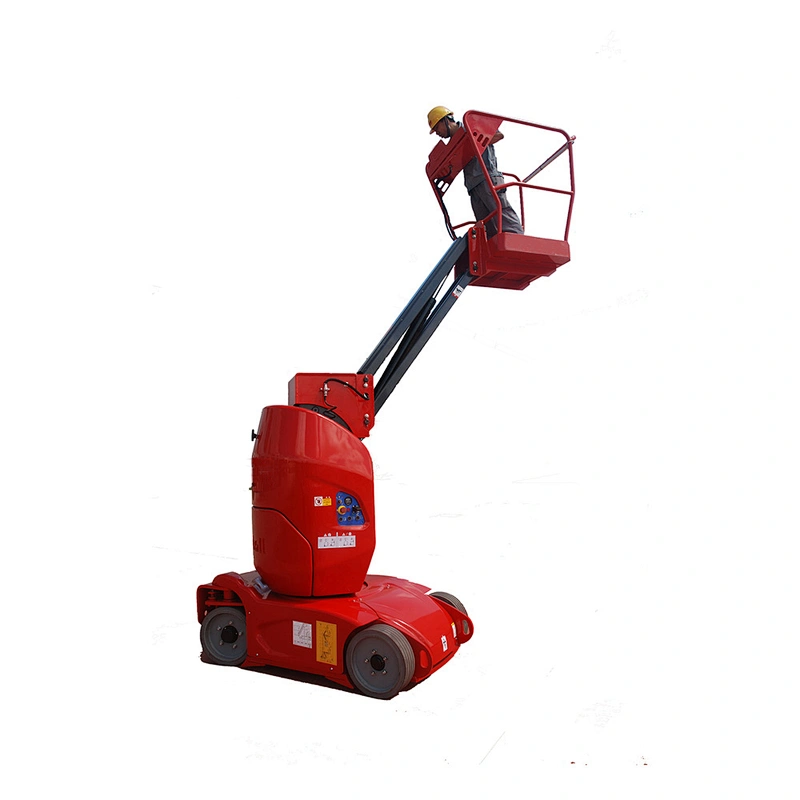

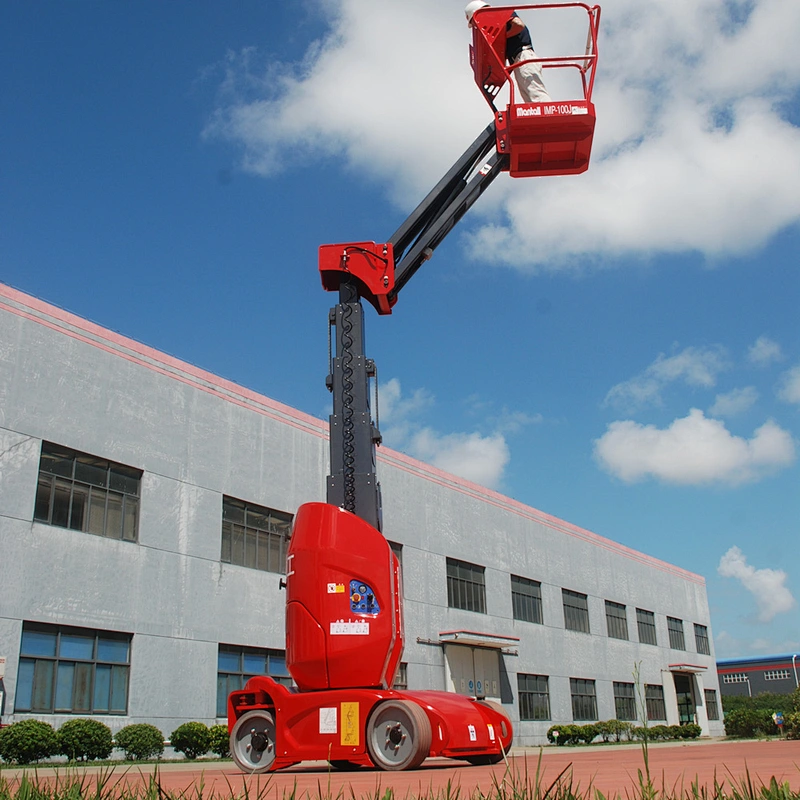

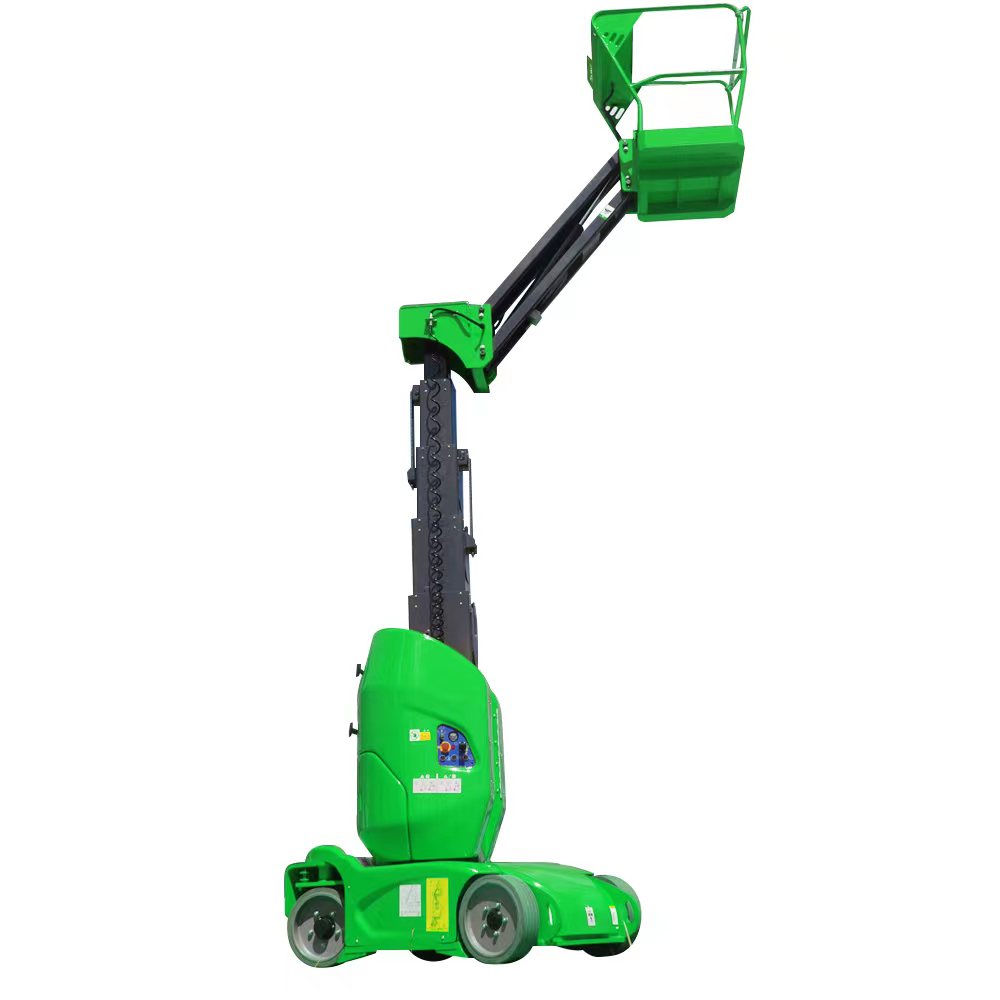

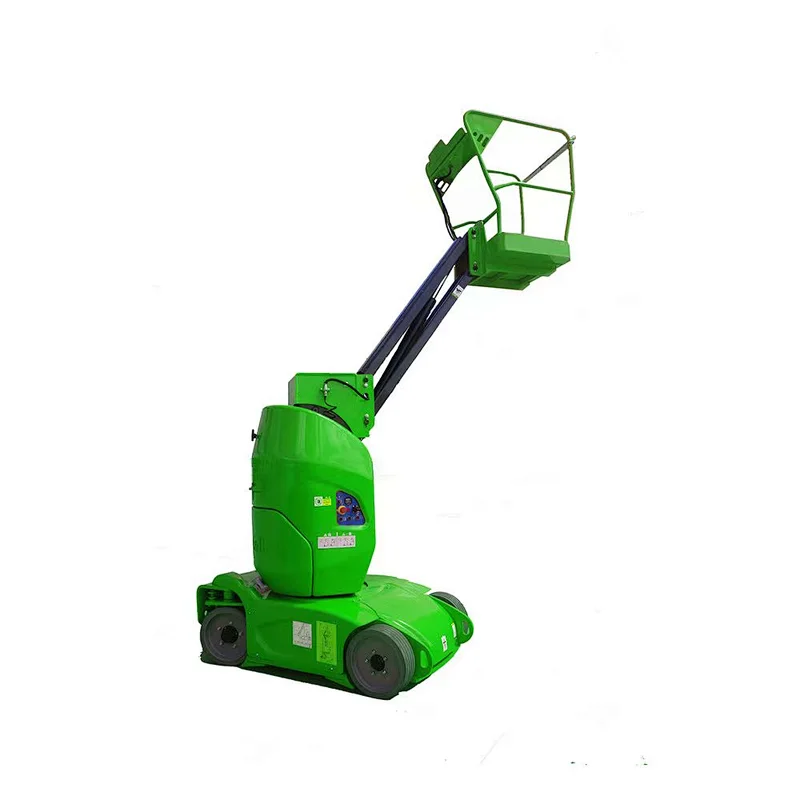

Low Noise Self Propelled Lift Platform Mast Lift Platform Height 6m
CHENLIFT the IMP-J series self-propelled single-column aerial working platform is suitable for indoor narrow space, with light body weight and compact collection size, The fuselage boom structure is welded with high strength alloy steel, which has the advantages of high strength and light weight. It has a working height of 8 m and a lateral operating radius of 3.2 m. The machine ADOPTS THE latest design of dual DC drive motor equipped with large torque reducer, with small input power, large output torque, fast walking speed, climbing ability and other advantages. The fuselage adopts streamline design, the appearance line is strong, the modern feeling is full.
Standard configurations：
- l Ground Emergency Lowering Valve.
- l Proportional Raising and Driving Control.
- l Standard Platform With Median Sliding Rod.
- l Wide Type Forklift Handing Notch.
- l Adjustable Work Tray
- l Auxiliary Platform Lowering Valve
- l Double Wheel Brake
- l Pothole Guards
Specification:
Model | CLP60J | CLP80J |
Max. Working Height | 8m | 10m |
Max. Platform Height | 6m | 8m |
Max.Outreach | 3.15m | 3.15m |
Lifting Capacity | 200Kg | 200Kg |
Weight | 2800Kg | 2870Kg |
Platform Size | 0.91*0.85*1.14m | 0.91*0.85*1.14m |
Stowed Size | 2.76*0.99*1.99m | 2.76*0.99*1.99m |
Gradeability | 23% | 23% |
Wheelbase | 1.2m | 1.2m |
Ground Clearance | 0.075m | 0.075m |
Pothole Protection Board Ground Clearance | 0.025m | 0.025m |
Turning radius(Outside) | 1.82m | 1.82m |
Turning Radius(Inside) | Om | Om |
Jip Swing | -60°/+60° | -60°/+60° |
Max. Vertical Tilt | 3 | 3 |
Driving Speed (Stowed) | 4.5Km/h | 4.5Km/h |
Driving Speed (Raised) | 0.7Km/h | 0.7Km/h |
Power Source | 24V/240Ah | 24V/240Ah |
Tire Size | 406*125mm | 406*125mm |
Other Related Products
Why choose Our Mobile Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 20 Years Experience
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.
